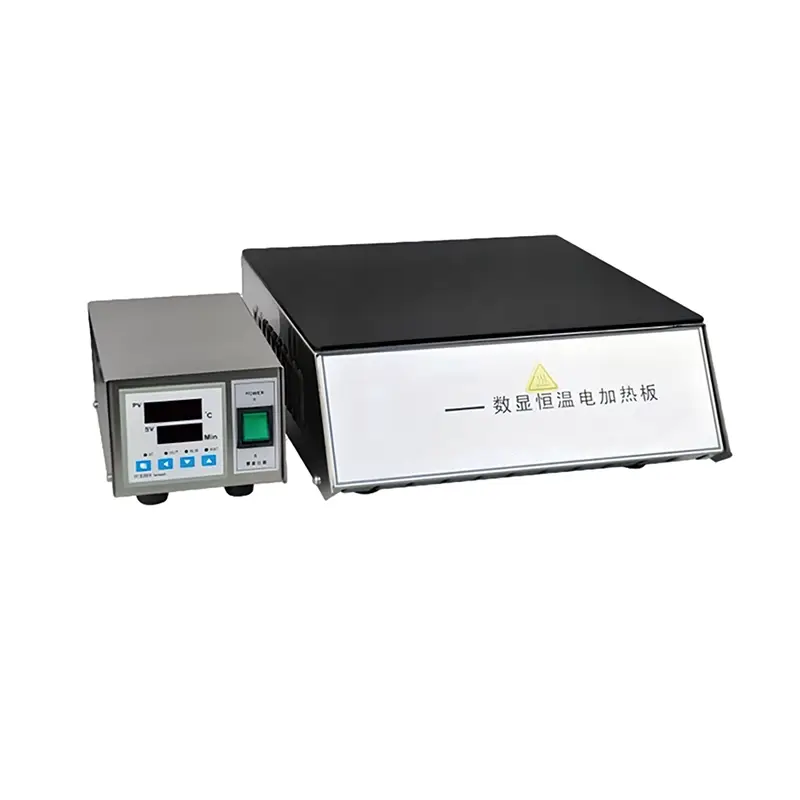

Name：Electric Heating Plate
Model：EJ-EHD35
1. Product description:
This product is used for heating liquids in laboratories in colleges and universities, petrochemical industry, medicine, environmental protection, etc.
2. Features:
2.1 Employing imported energy regulation switches.
2.2 Employing international advanced ceramic fiber heat preservation material, good heat preservation performance,
2.3 3.The fixing panel is made of glass microcrystalline, resistant to strong acid and alkali.
2.4 4.The low expansion coefficient of glass ceramics ensures that the bearing surface does not deform under high temperature experiment.
2.5 316L stainless steel is used around the product to ensure that the whole machine is corrosion-resistant everywhere, and there is no damage even if the liquid splashing on the control panel.
2.6 The highest operating temperature can reach 450℃.
Style: General anticorrosive type
Voltage: AC220V 50HZ
Temperature Range: RT+20~450℃
Input Power: 2400W
Bearing Surface size W*D(mm): 500*300
Heating Size W*D(mm): 400*240
Dimension W*D*H(mm): 500*50*125
| Model | EJ-EHD30 | EJ-EHD35 | EJ-EHD30D | EJ-EHD35D |
|---|---|---|---|---|
| Style | General anticorrosive type | Digital display anti-corrosion type | ||
| Voltage | AC220V 50HZ | |||
| Temperature Range | RT+20~450℃ | RT+20~400℃ | ||
| Input Power | 1200W | 2400W | 1200W | 2400W |
| Bearing Surface size W×D(mm) |
300×300 | 500×300 | 300×300 | 500×300 |
| Heating Size W×D(mm) |
240×200 | 400×240 | 240×200 | 400×240 |
| Dimension W×D×H(mm) |
300×50×125 | 500×50×125 | 300×50×125 | 500×50×125 |
1. Can products be customized?
Yes, fully customizable per your specifications.
2. Accepted payment terms?
FOB, CIF, EXW, FCA, DDU, DAP and DDP.
