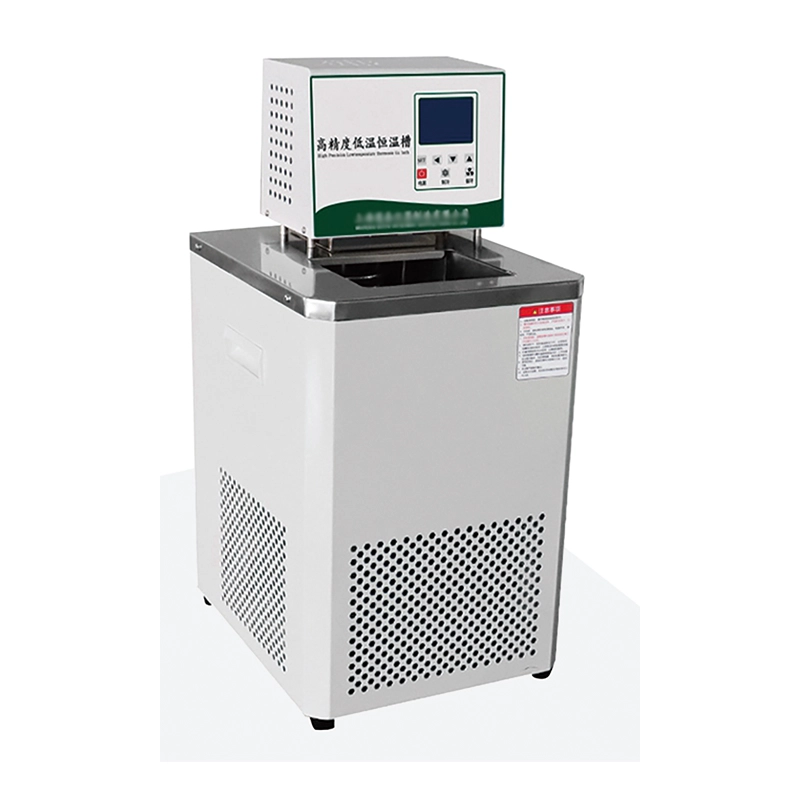

Precision Low-Temperature Constant Temperature Tank for Laboratory Use

Precision Low-Temperature Constant Temperature Tank for Laboratory Use

Name：Low temperature constant temperature tank

Model：EJ-LTCV0506

Specs More

Subdivide：

Price varies based on configuration and order quantity. Contact us for a quote.

Get a Quote Contact Sales Product Catalog

Related products

Heating and cooling equipment

Low temperature constant temperature tank (LTCH series)Constant temperature water bath (TWB series)Closed Electricity Furnace (EF series)Electric Heating Plate 450C Electric Heating Plate 400C High temperature box type resistance furnace Medium temperature box type resistance furnace Integral box type resistance furnace Low Temp. Circulator Bath（7L）Low Temp. Circulator Bath（15L）Ceramic Glass Hot Plate Economical Hot Plate Precision Thermostatic Heating Plate Stainless Steel Thermostatic Heating Plate Electric Sand Bath Experimental Electric Furnace(FL)Water Bath (DZKW Series)Water Bath (KHW Series)Water Bath (KHW-LC Series)Water Tank（HHW Series）Water Tank（SHHW Series）Water Distiller HS.Z68 (Manual-control)Water Distiller DZ ( Auto-control)Muffle Furnace Tubular Furnace A magnetic stirrer Low temperature constant temperature tank (LTCV series)

Details Parameter Features FAQ

1. Product description:

The EJ-LTCV series low temperature constant temperature tank adopts advanced fluorine-free refrigeration system, the refrigeration coil is made of copper pipe coated with nickel, good heat transfer, and the table surface is made of 304 thick stainless-steel material. It provides users with a field source with controlled cold and heat, uniform and constant temperature.

2. Features:

3.1 PID intelligent control system, can automatically set the best parameters, but also manual adjustment of parameters.

3.2 PT100 temperature sensor U-wire three-wire wiring measurement is more accurate

3.3 Standard large screen LCD display, the display resolution is up to 0.01℃.

3.4 It has an over-temperature protection and over-temperature alarm system.

3.5 It has a timing function and can set the total working time of the equipment.

3.6 Hidden cooling coil design, using copper pipe coated with nickel, effective corrosion protection.

3.7 Digital locking control system to ensure the accuracy of data during the experiment.

3.8 Equipped with a silent circulation pump and a built-in copper core rotor motor to ensure uniform temperature.

More Spec.

Temperature range（℃）：-5～100

Resolution ratio（℃）：0.01

Fluctuation（±℃）：0.05

DimensionW*D*H(mm）：320*370*675

Power（KW）：0.8

Volume（L）：7.5

Slot opening（mm）：180*160

Slot depth（mm）：150

Pumping flow（L/min）：6

Vertical low temperature constant temperature tank

Model	Temperature range（℃）	Resolution ratio（℃）	Fluctuation（±℃）	Dimension	Power (kw)	Tank volume (L)	Slot opening（mm）	Slot depth (mm)	Head of delivery（m）	Pumping flow（L/min）
EJ-LTCV0506	-5~100	0.01	0.05	320370675	0.8	6	180*160	150	1.4	6
EJ-LTCV1006	-10~100		0.05		0.9
EJ-LTCV2006	-20~100		0.05		1.0
EJ-LTCV3006	-30~100		0.05	320370765	1.5
EJ-LTCV4006	-40~100		0.05	400450940	2.1
EJ-LTCV4506	-45~100		0.05		2.2
EJ-LTCV0510	-5~100		0.05	320370765	1.3	10	180*160	200		6
EJ-LTCV1010	-10~100		0.05		1.5
EJ-LTCV2010	-20~100		0.05		1.8
EJ-LTCV3010	-30~100		0.05	400450940	2.0
EJ-LTCV4010	-40~100		0.05		2.1
EJ-LTCV0515	-5~100		0.05	320370765	2.1	15	250*160	200		6
EJ-LTCV1015	-10~100		0.05		2.2
EJ-LTCV2015	-20~100		0.05		2.3
EJ-LTCV3015	-30~100		0.05	400450940	2.4
EJ-LTCV4015	-40~100		0.05	450540990	2.5
EJ-LTCV0520	-5~100		0.05	4004501040	2.3	20	250*160	300		6
EJ-LTCV1020	-10~100		0.05		2.4
EJ-LTCV2020	-20~100		0.05		2.5
EJ-LTCV3020	-30~100		0.05		2.6
EJ-LTCV4020	-40~100		0.05	4505401090	2.7
EJ-LTCV0530	-5~100		0.05	450540990	2.5	30	330*280	230	3	13
EJ-LTCV1030	-10~100		0.05		2.6
EJ-LTCV2030	-20~100		0.05		2.7
EJ-LTCV3030	-30~100		0.05		2.7
EJ-LTCV4030	-40~100		0.05	4505401090	3.0
EJ-LTCV0540	-5~100		0.05	5657101090	2.9	40	400*300	230
EJ-LTCV1040	-10~100		0.05	5657101090	3.0	40	400*300	230
EJ-LTCV2040	-20~100		0.05	5657101090	3.1	40	400*300	230
EJ-LTCV3040	-30~100		0.05	5657101090	3.5	40	400*300	230
EJ-LTCV0550	-5~100		0.05	5657101200	3.1	50	400*300	280
EJ-LTCV1050	-10~100		0.05	5657101200	3.2	50	400*300	280
EJ-LTCV2050	-20~100		0.05	5657101200	3.3	50	400*300	280
EJ-LTCV3050	-30~100		0.05	5657101200	3.5	50	400*300	280
EJ-LTCV0560	-5~100		0.05	5657101200	3.2	60	450*350	250
EJ-LTCV1060	-10~100		0.05	5657101200	3.3	60	450*350	250
EJ-LTCV2060	-20~100		0.05	5657101200	3.4	60	450*350	250
EJ-LTCV3060	-30~100		0.05	5657101200	3.6	60	450*350	250
EJ-LTCV05100	-5~100		0.05	8558101300	4.5	100	400*350	400
EJ-LTCV10100	-10~100		0.05	8558101300	4.7	100	400*350	400

Ultra-low temperature constant temperature tank

Model	Temperature range (℃)	Resolution ratio (℃)	Fluctuation (±℃)	Dimension	Power (kw)	Tank volume (L)	Slot opening (mm)	Slot depth (mm)
EJ-LTCV6006	-60-100	0.01	0.05	5606601130	3.2	6	180*160 150 inner loop
EJ-LTCV7006	-70-100		0.05	5606601130	3.3
EJ-LTCV8006	-80-100		0.05	5606601130	3.5
EJ-LTCV6010	-60-100		0.05	5606601130	3.4	10		200
EJ-LTCV7010	-70-100		0.05	5606601130	3.5
EJ-LTCV8010	-80-100		0.05	5606601130	3.6
EJ-LTCV6015	-60-100		0.05	5606601130	3.5	15	250*160	200
EJ-LTCV7015	-70-100		0.05	5606601130	3.6
EJ-LTCV8015	-80-100		0.05	6606601350	3.7
EJ-LTCV6020	-60-100		0.05	6606601350	3.7	20		300
EJ-LTCV7020	-70-100		0.05	6606601450	3.8
EJ-LTCV8020	-80-100		0.05	6606601450	3.9
EJ-LTCV6030	-60-100		0.05	seek advice from	4.0	30	330*280	230
EJ-LTCV7030	-70-100		0.05		4.2
EJ-LTCV8030	-80-100		0.05		4.5

1. Can products be customized?

Yes, all our dry cabinets and environmental chambers are fully customizable based on your technical specifications, capacity, materials (e.g., SUS304), and functional requirements (e.g., N₂ purge, heating, data logging).

2. What is the lead time?

• Standard models: 5–10 working days
• Customized configurations: 15–30 working days
Lead times may vary slightly based on order volume and component availability.

3. What trade terms do you support?

We offer flexible Incoterms® 2020 options to suit your logistics needs:

EXW (Ex-Works): You arrange pickup from our Hangzhou facility.
FOB (Free On Board): We deliver to the port of shipment; you handle ocean/air freight.
CIF (Cost, Insurance & Freight): We cover freight and insurance to your destination port. Import duties and local taxes are not included.
DAP (Delivered At Place): We deliver to your specified address. You handle import clearance, duties, VAT, and unloading.
DDP (Delivered Duty Paid): Available on request – we manage all costs including duties and taxes for door-to-door delivery.

Note: DDU is no longer used in Incoterms® 2020; DAP is the current standard.

4. How are shipping costs and taxes handled?

Shipping costs depend on product dimensions, weight, destination, and chosen transport method (sea, air, rail, or express). Import duties, VAT, GST, or other local taxes are typically the buyer’s responsibility unless DDP terms are selected. A detailed breakdown of all costs will be included in your official quotation.

5. What shipping methods are available?

Ocean freight (LCL/FCL)
Air cargo
Rail transport (e.g., China-Europe rail)
International express (DHL, FedEx, UPS, etc.)
Custom logistics solutions upon request

6. What payment methods do you accept?

Bank Transfer (T/T): 100% advance payment via SWIFT, FAST, MEPS, GIRO, or ACH
PayPal: For orders under USD 500, shipped via express only
Credit Card: Via secure payment gateway
Letter of Credit (L/C): Irrevocable L/C at sight, accepted for large orders

7. Do you have international export experience?

Yes. We regularly export to clients worldwide and are experienced in handling international documentation, customs compliance, and global logistics coordination for industrial equipment.
