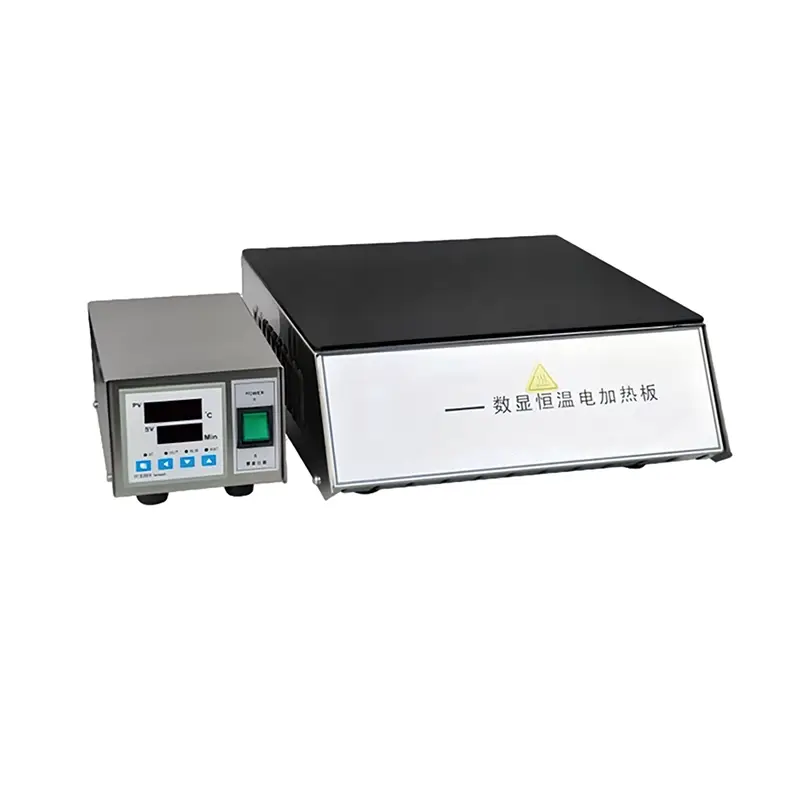

Name：Electric Heating Plate
Model：EJ-EHD30
1. Product description:
This product is used for heating liquids in laboratories in colleges and universities, petrochemical industry, medicine, environmental protection, etc.
2. Features:
2.1 Employing imported energy regulation switches.
2.2 Employing international advanced ceramic fiber heat preservation material, good heat preservation performance,
2.3 3.The fixing panel is made of glass microcrystalline, resistant to strong acid and alkali.
2.4 4.The low expansion coefficient of glass ceramics ensures that the bearing surface does not deform under high temperature experiment.
2.5 316L stainless steel is used around the product to ensure that the whole machine is corrosion-resistant everywhere, and there is no damage even if the liquid splashing on the control panel.
2.6 The highest operating temperature can reach 450℃.
Style: General anticorrosive type
Voltage: AC220V 50HZ
Temperature Range: RT+20~450℃
Input Power: 1200W
Bearing Surface size W*D(mm): 300*300
Heating Size W*D(mm): 240*200
Dimension W*D*H(mm): 300*50*125
| Model | EJ-EHD30 | EJ-EHD35 | EJ-EHD30D | EJ-EHD35D |
|---|---|---|---|---|
| Style | General anticorrosive type | Digital display anti-corrosion type | ||
| Voltage | AC220V 50HZ | |||
| Temperature Range | RT+20~450℃ | RT+20~400℃ | ||
| Input Power | 1200W | 2400W | 1200W | 2400W |
| Bearing Surface size W×D(mm) |
300×300 | 500×300 | 300×300 | 500×300 |
| Heating Size W×D(mm) |
240×200 | 400×240 | 240×200 | 400×240 |
| Dimension W×D×H(mm) |
300×50×125 | 500×50×125 | 300×50×125 | 500×50×125 |
Yes, all our dry cabinets and environmental chambers are fully customizable based on your technical specifications, capacity, materials (e.g., SUS304), and functional requirements (e.g., N₂ purge, heating, data logging).
• Standard models: 5–10 working days
• Customized configurations: 15–30 working days
Lead times may vary slightly based on order volume and component availability.
We offer flexible Incoterms® 2020 options to suit your logistics needs:
Note: DDU is no longer used in Incoterms® 2020; DAP is the current standard.
Shipping costs depend on product dimensions, weight, destination, and chosen transport method (sea, air, rail, or express). Import duties, VAT, GST, or other local taxes are typically the buyer’s responsibility unless DDP terms are selected. A detailed breakdown of all costs will be included in your official quotation.
Yes. We regularly export to clients worldwide and are experienced in handling international documentation, customs compliance, and global logistics coordination for industrial equipment.
