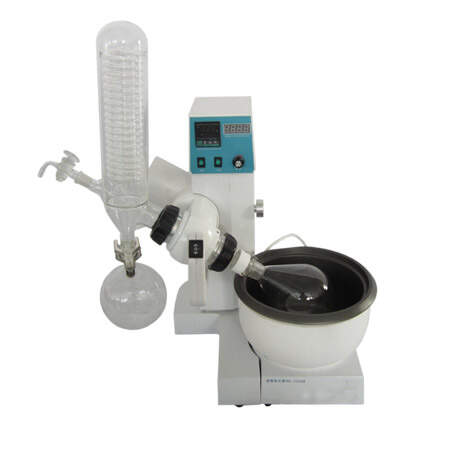

Use Description:
Rotary evaporation using a rotary evaporator, the (flask), the area was evaporated under reduced pressure to increase the side of the rotating water bath, while the heating device, the diffusion of the solution bottle and evaporated. Is an ideal basic equipment required chemical industry, pharmaceutical industry, universities and research laboratories and other units for the manufacture and analysis of experiments which concentration, drying, recycling.
Technical parameters:
Host: Rocker plate buttons, fast automatic lifting,0-150 mm

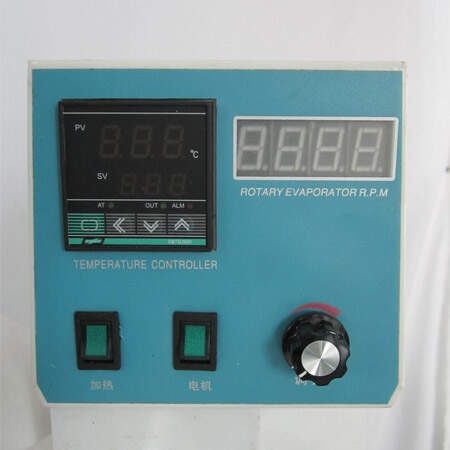

Speed: Speed Digital Display 20-200 rev / min, power 40W

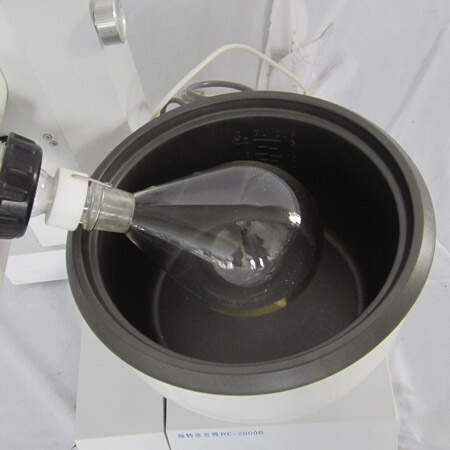

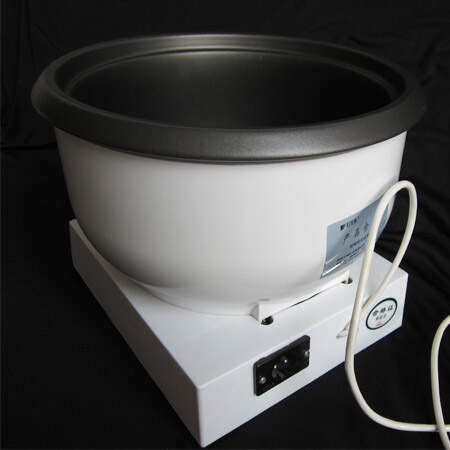

Add hot: Teflon composite pan, fully enclosed heater, power 1.4KW
Temperature range: automatic temperature control, digital display temperature, ambient temperature -90 degrees
Total power: 1.5KW, Voltage:-220V50HZ
Cooler: vertical, high temperature fine double back to the integration of high-quality glass milling with milling Condenser I collect bottles to achieve rapid loading and unloading
Feeder: Valve type feeding tube tetrafluoroethylene tube sockets
Seal: Viton gasket vacuum
Features:
Teflon water bath, the transparent shield, insulation, energy, explosion-proof, splash-proof, rust-proof, anti-pollution.
Antirust aluminum body member, special engineering plastics, compact structure, beautiful appearance, durable.
|
Model |
EJ-RE2AN |
EJ-RE2BN |
EJ-RE2EN |
|
Spin the bottle（L） |
2 29# |
||
|
Collection bottle（L） |
1 29# |
||
|
Motor Power（W） |
40 |
40 |
40 |
|
Rotation speed（rpm） |
Stepless 0-200 |
Digital 0-200 |
Liquid crystal 0-200 |
|
Lifting the way |
Electric automatic lifting |
||
|
Bath power（KW） |
0.8 |
||
|
Condenser |
Reflux condenser double standard integration |
||
|
Power supply |
220V 50HZ |
||
|
Water bath temperature range |
Digital temperature control Room temperature～99°C±1°C |
||
1. Can products be customized?
Yes, fully customizable per your specifications.
2. Accepted payment terms?
FOB, CIF, EXW, FCA, DDU, DAP and DDP.
