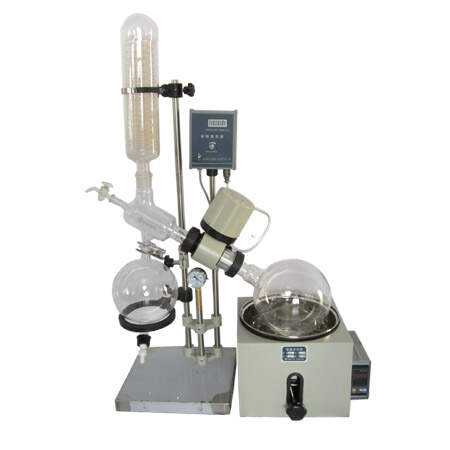

Rotary evaporator (5L)

Name：Rotary evaporator (5L)

Model：EJ-RE5

Specs 5L10L20L40L2L2L3L More

Subdivide：

Price varies based on configuration and order quantity. Contact us for a quote.

Get a Quote Contact Sales Product Catalog

Related products

Glass reactor/Rotary evaporator

Jacketed glass reactor Low temperature cooling liquid circulating pump

Details Parameter Features FAQ

Main features:
RE Series rotary evaporator (unit) can be heated at a constant temperature, under vacuum conditions to form a film of rotation, high evaporation, and then cooled recovered solvent, especially for heat-sensitive materials crystallization, separation, solvent recovery and other operations, some models also do reflux extraction. biological, pharmaceutical, chemical, food industry research and production of major equipment.
◆ unique sealing structure and selection of sealing materials, corrosion resistance
◆ high evaporation efficiency, high recovery
◆ modular series design, scalability
◆ easy assembly and disassembly, convenient operation, easy maintenance
◆ Stainless steel (special plastic) chassis, columns, vertical shaft, aluminum castings, attractive appearance, corrosion resistance
◆ critical seals, electronic components imported parts
Specifications:

Basic parameters	Model	EJ-RE5
	Evaporating flask（ml)	5000/29
	Collection bottle（ml)	3000/35
	Water bath power（kw)	2
	Water bath temperature range（°C）	Room temperature—99
	Vacuum degree（MPa）	-0.098
	Speed（rpm）	0—90
	Evaporation rate（H2O)	≥2L/h
	Motor Power（w）	40
	Voltage	220V/50HZ
	Dimensions（mm×mm×mm)	850×400×1150
Function Deployment	Viton seals	Standard
	Ball mouth collection	Standard
	Vertical condenser	Standard
	Digital Thermostat	Standard
	Digital display speed	Standard
	Electronic stepless	Standard

	The bath lift	Standard

	0.5-3LSpin the bottle	Optional
	1-5LSpin the bottle	Standard
	0.5-5LCollection bottle	Optional
	1-5LCollection bottle	Optional
	Decentralization of material	Optional
	Oil bath temperature (room temperature -299)	Optional

More Spec. 5L10L20L40L2L2L3L

Evaporating flask(ml)：5000
Collection bottle(ml)：3000
Water bath power(kw)：2
Vacuum degree(MPa)：-0.098
Speed(rpm/min)：0-90
Voltage：220V/50HZ/60HZ

1. Can products be customized?

Yes, all our dry cabinets and environmental chambers are fully customizable based on your technical specifications, capacity, materials (e.g., SUS304), and functional requirements (e.g., N₂ purge, heating, data logging).

2. What is the lead time?

• Standard models: 5–10 working days
• Customized configurations: 15–30 working days
Lead times may vary slightly based on order volume and component availability.

3. What trade terms do you support?

We offer flexible Incoterms® 2020 options to suit your logistics needs:

EXW (Ex-Works): You arrange pickup from our Hangzhou facility.
FOB (Free On Board): We deliver to the port of shipment; you handle ocean/air freight.
CIF (Cost, Insurance & Freight): We cover freight and insurance to your destination port. Import duties and local taxes are not included.
DAP (Delivered At Place): We deliver to your specified address. You handle import clearance, duties, VAT, and unloading.
DDP (Delivered Duty Paid): Available on request – we manage all costs including duties and taxes for door-to-door delivery.

Note: DDU is no longer used in Incoterms® 2020; DAP is the current standard.

4. How are shipping costs and taxes handled?

Shipping costs depend on product dimensions, weight, destination, and chosen transport method (sea, air, rail, or express). Import duties, VAT, GST, or other local taxes are typically the buyer’s responsibility unless DDP terms are selected. A detailed breakdown of all costs will be included in your official quotation.

5. What shipping methods are available?

Ocean freight (LCL/FCL)
Air cargo
Rail transport (e.g., China-Europe rail)
International express (DHL, FedEx, UPS, etc.)
Custom logistics solutions upon request

6. What payment methods do you accept?

Bank Transfer (T/T): 100% advance payment via SWIFT, FAST, MEPS, GIRO, or ACH
PayPal: For orders under USD 500, shipped via express only
Credit Card: Via secure payment gateway
Letter of Credit (L/C): Irrevocable L/C at sight, accepted for large orders

7. Do you have international export experience?

Yes. We regularly export to clients worldwide and are experienced in handling international documentation, customs compliance, and global logistics coordination for industrial equipment.
