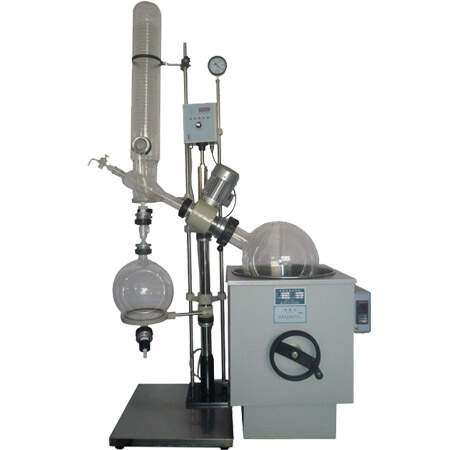

Rotary evaporator (10L)

Name：Rotary evaporator (10L)

Model：EJ-RE1002A/B/C

Specs 10L20L40L2L5L2L3L More

Subdivide：

Price varies based on configuration and order quantity. Contact us for a quote.

Get a Quote Contact Sales Product Catalog

Related products

Glass reactor/Rotary evaporator

Jacketed glass reactor Low temperature cooling liquid circulating pump

Details Parameter Features FAQ

Main features:
RE Series rotary evaporator (unit) can be heated at a constant temperature, under vacuum conditions to form a film of rotation, high evaporation, and then cooled recovered solvent, especially for heat-sensitive materials crystallization, separation, solvent recovery and other operations, some models also do reflux extraction. biological, pharmaceutical, chemical, food industry research and production of major equipment.
◆ unique sealing structure and selection of sealing materials, corrosion resistance
◆ high evaporation efficiency, high recovery
◆ modular series design, scalability
◆ easy assembly and disassembly, convenient operation, easy maintenance
◆ Stainless steel (special plastic) chassis, columns, vertical shaft, aluminum castings, attractive appearance, corrosion resistance
◆ critical seals, electronic components imported parts
Specifications:

Basic parameters	Model	EJ-RE1002A	EJ-RE1002B	EJ-RE1002C
	Evaporating flask（L)	10	10	10
	Collection bottle（L)	5	5	5
	Water bath power（kw)	3	3	3
	Water bath temperature range（°C）	Room temperature—99	Room temperature—99	Room temperature—99
	Reach vacuum（Pa）	＜399	＜399	＜399
	Speed（rpm）	0—110	0—110	0—110
	Evaporation rate（H2O)	≥3L/h	≥3L/h	≥3L/h
	Motor Power（w）	120	120	120
	Voltage	220V/50HZ	220V/50HZ	220V/50HZ
	Dimensions（mm×mm×mm)	950×500×1800	950×500×1800	950×500×1800
Function Deployment (• Standard) (- Optional)	Viton seals	Standard	Standard	Standard
	Vertical condenser	Standard	Standard	Standard
	Digital Thermostat	Standard	Standard	Standard
	Digital display speed	Standard	Standard	Standard
	Frequency Control	Standard	Standard	Standard
	Explosion-proof motors	/	/	Standard
	Anti waterfall controller	/	/	Standard
	Manual lifting oil bath pot	Standard	/	Optional
	Automatic lifting the bath	/	Standard	Optional
	Continuous collection	Standard	Standard	Standard
	Vacuum shut-off valve	Standard	Standard	Standard
	Temperature mouth	Standard	Standard	Standard
	Threaded connection	Standard	Standard	Standard
	Decentralization of material	Standard	Standard	Standard
	Cold trap	Optional	Optional	Optional
	PTFE spacer	Standard	Standard	Standard
	Dual collection	Optional	Optional	Optional

More Spec. 10L20L40L2L5L2L3L

Evaporating flask(L)：10
Collection bottle(L)：5
Water bath power(kw)：3
Vacuum degree(MPa)：-0.098
Speed(rpm/min)：0-110
Voltage：220V/50HZ/60HZ
Dimensions(mm×mm×mm):950×500×1800
