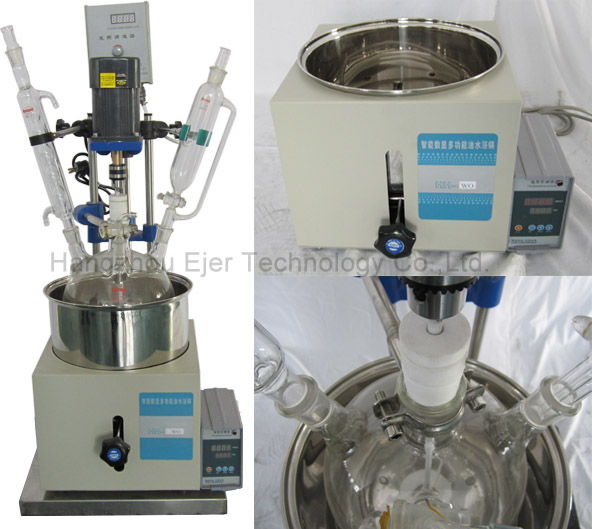

Name：Single glass reactor (5L)
Model：EJ-SGR5
Description:
Single-layer glass reactor (vacuum reactor) reactor inner place to do stirring reaction solvent,The intermediate layer may pass on the heat source (coolant, oil and hot water) to maintain constant temperature, heating and cooling the reaction,Single reactor by the digital control oil bath pan or electric heating units.Meanwhile, in the state of atmospheric or vacuum distillation of the reaction solution to control reflux and is now synthetic chemicals, bio-pharmaceuticals and new materials prepared ideal experimental / pilot / production equipment.The principle of the reactor: at a constant temperature set in a closed glass vessel and stirred under atmospheric pressure or negative pressure, the reaction can be controlled and the reaction solution was evaporated and refluxed.
Instrument features:
F series single reactor (device) can be of various synthesis reaction solvent at a constant temperature, the reaction part of the controllable instrument sealed structure can be continuously sucked by a negative pressure of various liquids and gases can also be done at different temperatures reflow or distillation.
*Frequency Control, AC induction motor, speed figures show a constant, no brush, no sparks, security and stability, can continue to work;
*Supporting the use of GG-17 high-quality glass Pyrex materials production, with good chemical and physical properties; big bottle design,Hand extends into the bottle can be cleaned.
*PTFE seal mechanical components, proprietary technology, to maintain the best market similar products vacuum.
*Minimal or no dead ends PTEE discharge valves, solids / liquid material can be easily released from below.
*Digital display thermostat oil bath pot, intelligent PID control, temperature control accurate and convenient;
*Overall structure is beautiful, easy to operate;
*Explosion series to choose from. (Cooling coils can be installed according to user needs, the installation of explosive devices)
Specifications:
| Basic parameters | Model | EJ-SGR5 |
| The reaction flask（L) | 5 | |
| Bottle number | 5 | |
| Oil (water) bath pot power（kw) | 1.8 | |
| Oil (water) bath pot temperature range（°C） | Room temperature—299 | |
| Speed（rpm） | 0—1350 | |
| Stirring shaft(mm) | 8 | |
| Mixing Power（w） | 40 | |
| Voltage / frequency | 220V/50HZ | |
| Dimensions（mm×mm×mm) | 450×390×900 | |
| Function Deployment | Electronic governor | Standard |
| Vertical condenser | Standard | |
| Digital Thermostat | Standard | |
| Digital display speed | Standard | |
| Temperature Tube | Standard | |
| Vacuum sealed | Standard | |
| Feeding piston | Standard | |
| Distillation unit | Standard | |
| Reflux device | Standard | |
| Low speed by force | Standard | |
| Explosion-proof motors | Optional | |
| Explosion controller | Optional |
