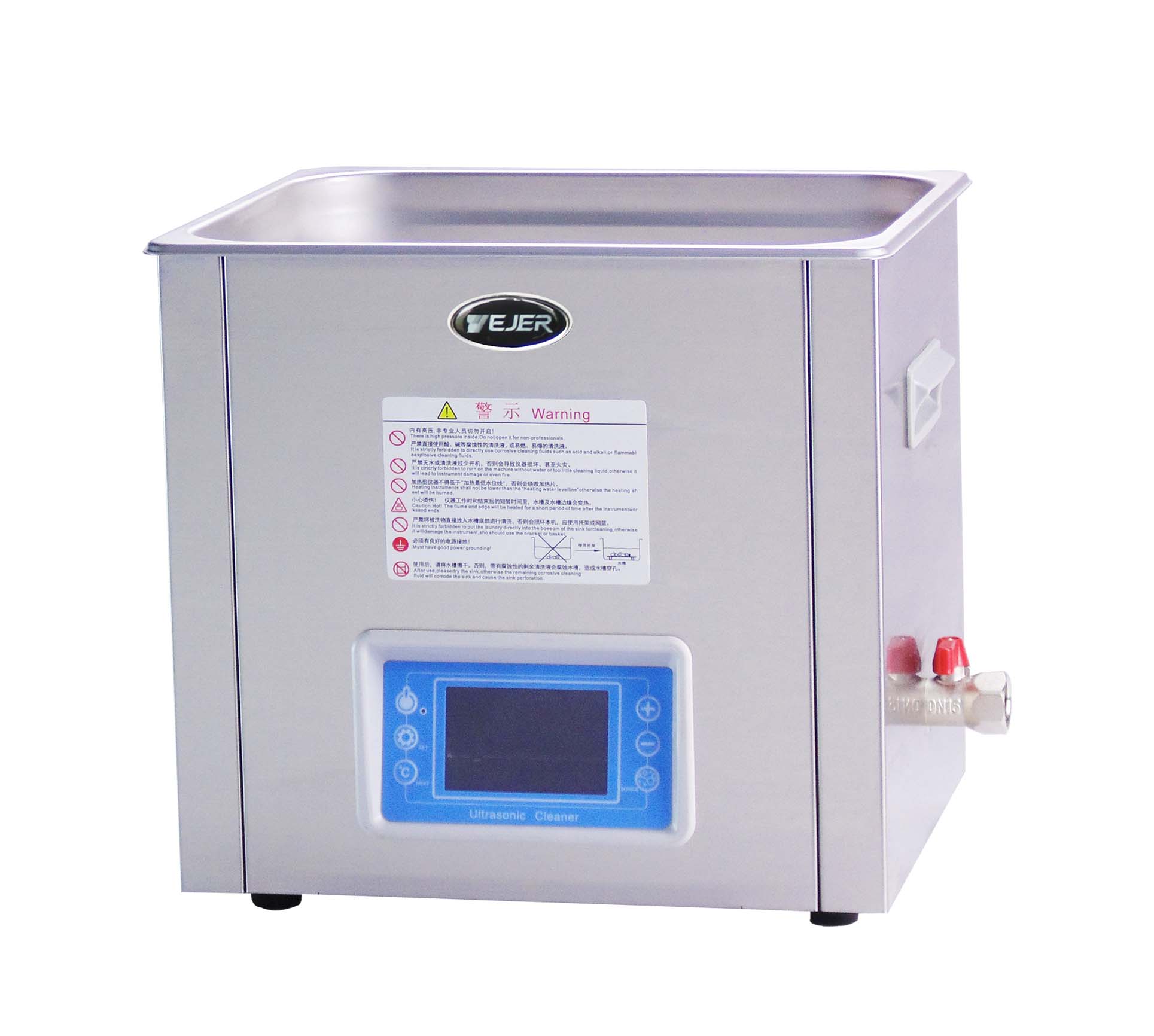

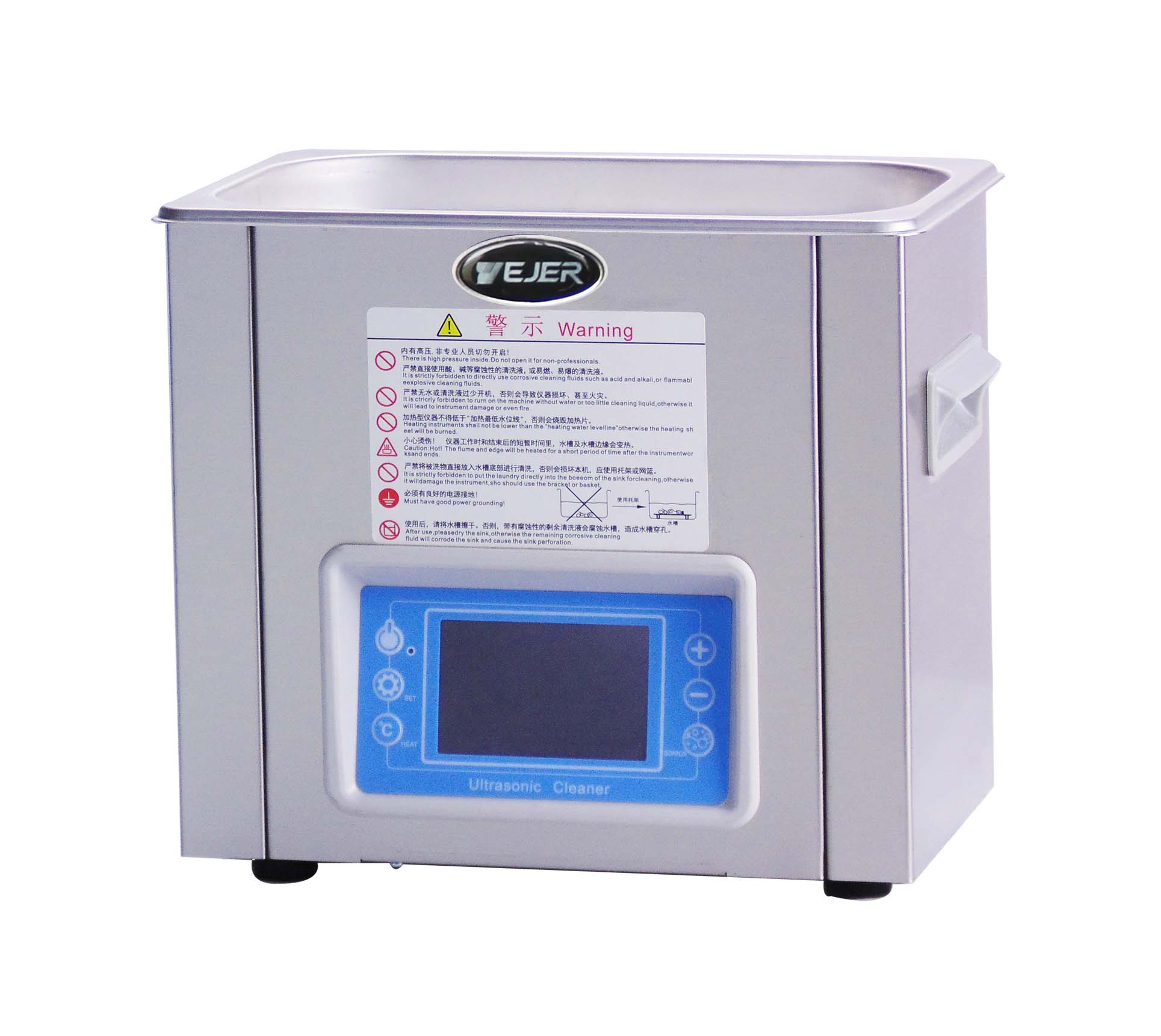

Name：Ultrasonic Cleaning Instrument (AT Series)
Model：EJ-UC10AT
1. Product description:
With strong penetrability and permeability, it can easily penetrate the glass wall of the beaker to wash away the dirt on the inner wall. It can be used to clean the geometrically complex items, such as the deep holes, blind holes, concave-convex grooves and etc. And also can be used to mix, degas, deaerate or extract the items.
2. Features:
2.1 Dual Control Interface: Features both a touch LCD screen and physical buttons for versatile operation.
2.2 Digital Control System: Equipped with a microcomputer processor for fully digitalized, stable performance.
2.3 User-Friendly Menu: The LCD menu allows for rapid and intuitive parameter settings.
2.4 Timer Range: Adjustable timer from 1 to 999 minutes.
2.5 Power Adjustment: Ultrasonic power is adjustable from 20% to 100% (with 1% increments for precise control).
2.6 Temperature Control: Setting range from 10°C to 80°C (display precision of 0.1°C).
2.7 Real-Time Display: Simultaneously displays both the set temperature and the actual measured temperature.
2.8 Safety Alarms: Automatically detects and alarms for no-water or low-water levels during heating.
2.9 Auto-Stirring: Automatically stirs during the heating process to ensure uniform water temperature.
2.10 Overheat Protection: Built-in automatic protection against instrument overheating.
2.11 Memory Function: Automatically remembers set parameters after power failure.
2.12 Degas Function: Includes a dedicated degassing function.
2.13 Standard Accessories: Includes lid, tray, and hose (hose provided for models equipped with a drain valve).
2.14 Optional Accessories: Stainless steel mesh basket.
Tank Capacity (L):10
Frequency (KHZ): 28
Tank size (mm):300*240*150
Outer size (mm):320*260*290
Power (W):250
Heating power (W):400
Temp. control range (℃):10-80
Function: digital control, heating, adjustable power
Drain Valve: Yes
| Model | Tank capacity (L) | Tank size (W*D*H mm) | Outer size (W*D*H mm) | Power (W) | Heating Power (W) | Drain Valve | Frequency (KHZ) | Temp. Range (℃) |
|---|---|---|---|---|---|---|---|---|
| EJ-UC4.5AT | 4.5 | 300*150*100 | 320*170*280 | 150 | 200 | N | 28 | 10~80 |
| EJ-UC6AT | 6 | 300*150*150 | 320*170*280 | 200 | 300 | N | 28 | 10~80 |
| EJ-UC10AT | 10 | 300*240*150 | 320*260*290 | 250 | 400 | Y | 28 | 10~80 |
| EJ-UC10-AT | 10 | 300*240*150 | 320*260*290 | 300 | 400 | Y | 28 | 10~80 |
| EJ-UC15AT | 15 | 330*300*150 | 350*320*300 | 400 | 500 | Y | 28 | 10~80 |
| EJ-UC22.5AT | 22.5 | 500*300*150 | 510*320*310 | 500 | 800 | Y | 28 | 10~80 |
| EJ-UC30AT | 30 | 500*300*200 | 510*320*360 | 600 | 1000 | Y | 28 | 10~80 |
