Applications:

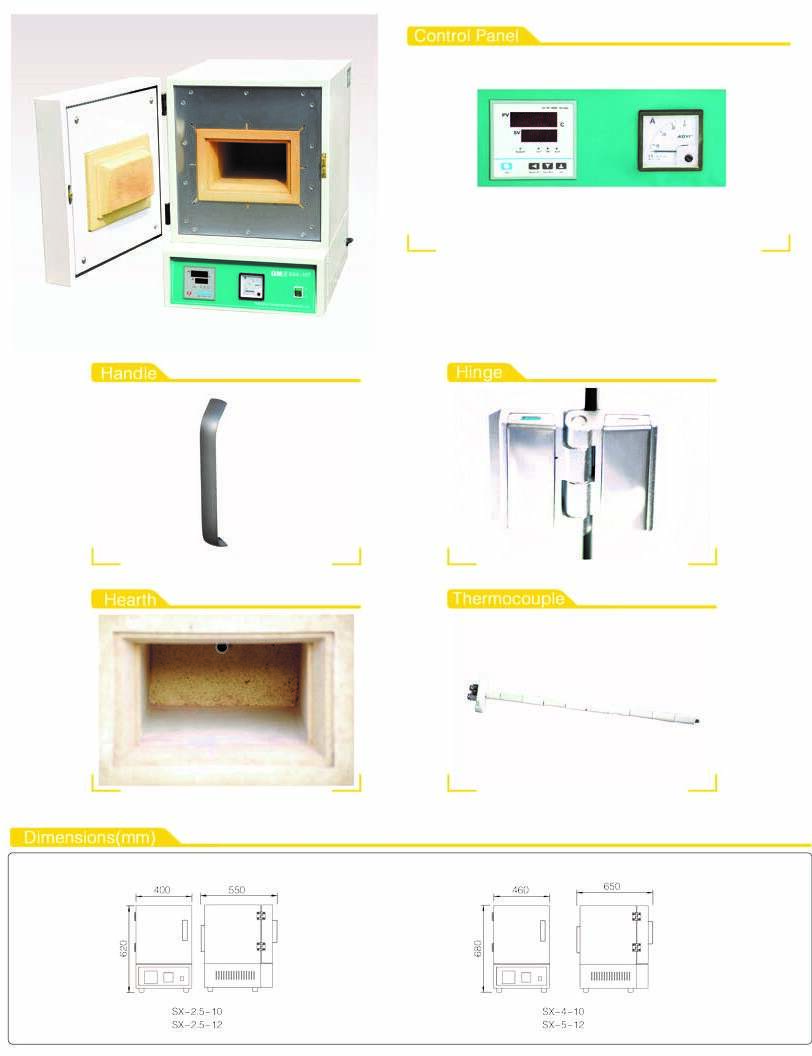

The box type resistance furnace is specially used for the laboratory of industrial and mining enterprises, universities and research institutes as the analysis of chemical elements and the high temperature heat treatment such as quenching, annealing and tempering of small steel parts; it can also be used for sintering, dissolving, analyzing and other high temperature heating of metal, stoneware and ceramics.

Features:
☆It has high-precision intelligent digital display instrument. The temperature control system adopts microcomputer chip processor, with PID temperature controller, time setting, temperature difference correction, over-temperature alarm and other functions, has high temperature control accuracy. The time setting range is: 0-9999 minutes.
☆The unique furnace door design makes the door opening operation safe and easy, ensuring that the high temperature hot air in the furnace will not leak.
☆The furnace is made of high temperature refractory material to ensure durability.
☆ Excellent door seal minimizes heat loss and increases the uniformity of temperature inside the furnace.
☆The double-layer design of the cabinet shell effectively blocks the internal temperature and reduces the temperature of the shell, achieving energy saving and environmental protection. The panel is made of stainless steel and has the characteristics of corrosion resistance and high temperature invariance.
☆The controller is integrated with the box body. But the bottom case can be pulled out for the convenience of repairing and maintaining.


Technical Parameters:
Operating temperature range :1000℃
Heating time : 90min
Power supply : AC220V
Inner size : W300*D200*H120mm
Outer size : W590*D460*H680mm
Package size: W670*D520*H710mm
Average Power: 4000W
Temperature fluctuation :±5℃
N.W:70kg; G.W:88kg
Operating temperature range :1000℃
Heating time : 90min
Power supply : AC220V
Inner size : W300*D200*H120mm
Outer size : W590*D460*H680mm
Package size: W670*D520*H710mm
Average Power: 4000W
Temperature fluctuation :±5℃
N.W:70kg; G.W:88kg

Model SX-2.5-10T
SX-2.5-10TC
SX-4-10T
SX-4-10TC
SX-2.5-12T
SX-2.5-12TC
SX-5-12T
SX-5-12TC
Heating method Four-sided nickel-chromium alloy heating
Performance
Operating temp range
1000℃ 1200℃
Temp resolution
1℃
Temp fluctuation
±5℃
Heating time
90 min
Way of working
continuous
Structure Exhaust vent
?25mm*1 optional
Furnace material Aluminum silicate
Heating element
Alloy wire
Rated power
2.5kw 4kw 2.5kw 5kw
Shell material
T stands for cold rolled steel sheet; TC stands for stainless steel
Controller Temp control
Dual column digital display, PID
Program mode
Optional
Temp setting
Tap the four button to set
Temp display Actual temperature: digital tube display (line 1)
Set temperature: digital tube display (line 2)
Timing
0~9999 minutes (with timing function)
Running function Fixed value operation, timing operation, automatic stop
Attachment function
Deviation correction, menu button lock, power failure compensation, power failure memory
Sensor K type
Safety equipment Over temperature alarm
Specification Inner size(W*D*H mm)
200*120*80 300*200*120 200*120*80 300*200*120
Outer size(W*D*H mm)
490*400*620 590*460*680 490*400*620 590*460*680
Package size(W*D*H mm) 570*460*650 670*520*710 570*460*650 670*520*710
Capacity 2L 7L 2L 7L
Voltage (50/60Hz) / rated current AC220V/11A AC220V/18A AC220V/11A AC220/18A
N.W/G.W 45/56kg 70/88kg 45/56kg 70/88kg
Optional device Exhaust vent
Product page link Details Details Details Details

1. Can products be customized?

Yes, fully customizable per your specifications.

2. Accepted payment terms?

T/T (100% advance bank transfer) - SWIFT, FAST, MEPS, GIRO, and ACH accepted
PayPal (Amount less than $500, and must be transported by Express.).
Credit Card
Letter of Credit (LC)


3. Available shipping methods?

By Sea, By air, rail transport, international express or as per your request.

4. Export experience?

We export globally, serving clients in over 100 countries and regions.

5. How long is the production time?

Standard product: 5-10 days, customized product: 15-30 days.

6、Supported trade terms?


FOB, CIF, EXW, FCA, DDU, DAP and DDP.
