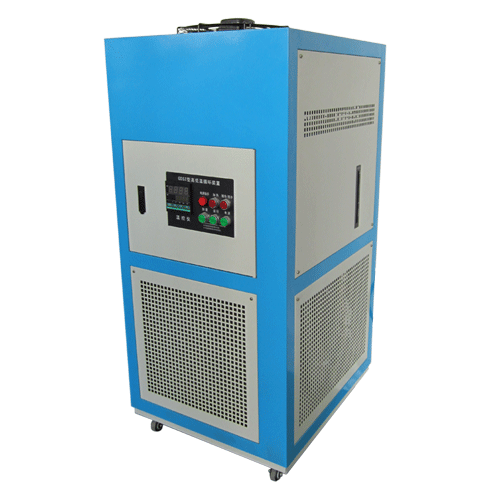

Temperature cycling machine

Name：Temperature cycling machine

Model：EJ-TC5HL

Specs More

Subdivide：

Price varies based on configuration and order quantity. Contact us for a quote.

Get a Quote Contact Sales Product Catalog

Related products

Glass reactor/Rotary evaporator

Jacketed glass reactor Low temperature cooling liquid circulating pump

Details Parameter Features FAQ

Simple Introduction: EJ-TC5HL series high temperature liquid circulation loop means the entire system is closed,System with an expansion vessel, the expansion vessel and the insulating liquid circulation and does not participate in the liquid circulation, only mechanical connection, regardless of the temperature of the liquid circulating in the high or low temperature of the medium is lower than the expansion vessel 60.

EJ-TC5HL series of high-temperature cycle of the entire system of liquid circulation is closed, the system with expansion containers, expansion containers and liquid circulation adiabatic, and not involved in the liquid circulation, but the mechanical connection, regardless of the temperature of the liquid circulation temperature or low temperature The medium in the expansion vessel is below 60 degrees. The whole liquid circulation is a closed system, there is no water vapor absorption at low temperature, there is no oil mist at high temperature, heat conduction oil has a wide working temperature.
The following are the same as the "
EJ-TC5HL series of high and low temperature one machine in the EJ-TC5HLseries based on the study. Function more advanced, the use of more secure (the entire system is driven by the circulation pump, the work will not produce pressure), the operation is more simple and a key operation, the cycle can be used directly after the work of the use of)

Product model			EJ-TC520HL	EJ-TC525HL	EJ-TC530HL	EJ-TC535HL	EJ-TC540HL
Storage tank volume（L）			5	5	5	5	5
Heating chamber（L）			3	3	3	3	3
Working conditions	Use temperature range（℃）		-20 / +200	-25 / +200	-30 / +200	-35 / +200	-40 / +200
	Optimum ambient temperature（℃）		≤25	≤25	≤25	≤25	≤25
	Environmental Relative Humidity（℃）		≤60	≤60	≤60	≤60	≤60
	power supply		220V±10％ 50HZ	220V±10％ 50HZ	220V±10％ 50HZ	220V±10％ 50HZ	220V±10％ 50HZ
	input power（KW）		2	2	2	2	2
	Material viscosity		500C·S·t following	500C·S·t following	500C·S·t following	500C·S·t following	500C·S·t following
	Display mode		Digital	Digital	Digital	Digital	Digital
	Temperature control accuracy（℃）		±2	±2	±2	±2	±2
	Sensor indexing number		Pt100	Pt100	Pt100	Pt100	Pt100
	Set the way		In the use of temperature range arbitrarily set	In the use of temperature range arbitrarily set	In the use of temperature range arbitrarily set	In the use of temperature range arbitrarily set	In the use of temperature range arbitrarily set
	Meter adjustment range（℃）		-100 — +250	-100 — +250	-100 — +250	-100 — +250	-100 — +250
	safety protection		Delay, leakage, over current, overheating	Delay, leakage, over current, overheating	Delay, leakage, over current, overheating	Delay, leakage, over current, overheating	Delay, leakage, over current, overheating
	Cooling System	power（W）	1200	1200	1200	1200	1200
	Cooling System	Refrigerant	R22	R22	R22	R22	R22
	Circulation pump	power（W）	100	100	100	100	100
		power（W）	100	100	100	100	100
		flow（L/min）	20	20	20	20	20
		pressure（MPa）	0.5-1	0.5-1	0.5-1	0.5-1	0.5-1

More Spec.
