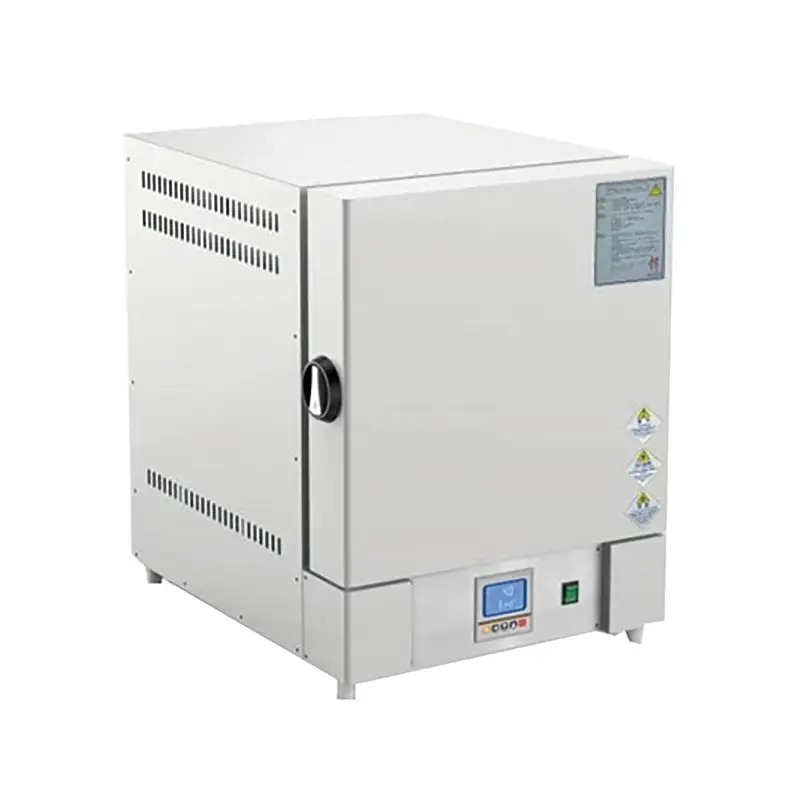

Name：Muffle Furnace
Model：EJ-CFM1.5-12 /EJ-CFM1.5-12P
1. Product description:
The box resistance furnace (muffle furnace) is an essential equipment, widely used in metallurgical laboratory for fusion experiment, heating treatment department for annealing, quenching and other high temperature places.
2. Features:
2.1 Big LCD screen shows data and is easy to view.
2.2 PID microprocessor temperature controller with timing function is easy to operate.
2.3 Imported ultra-temperature alloy heating element have long life, highly efficient and energy saving.
2.4 Short temperature rising time, from room temperature to 1200 OC takes less than 25 minutes.
2.5 Little thermal pollution, using new type ceramic fiber insulation material.
2.6 When the temperature reaches at 1200 OC, the furnace surface is not too hot about 50 OC.
2.7 Intelligent programmable temperature controller can set multi-step temperature and time. (Model ‘P’)
Power Consumption: 1.5KW
Temperature rise time: RT+10~1200<30min
Type of heating element: resistance wire
Interior Dimension (W*D*H mm): 120*200*80
Volume: 1.9L
External Dimension (W*D*H mm): 440*565*555
“P" Intelligent programmable temperature controller
| Model | EJ-CFM1.5-12/P | EJ-CFM2.5-12/P | EJ-CFM4-12/P | EJ-CFM8-12/P | EJ-CFM16-12/P |
|---|---|---|---|---|---|
| Power Consumption | 1.5KW | 2.5KW | 4KW | 8KW | 16KW |
| Temperature rise time | RT+10~1200<30min | RT+10~1200<30min | RT+10~1200<30min | RT+10~1200<30min | RT+10~1200<40min |
| Type of heating element | resistance wire | ||||
| Interior Dimension (W×D×H mm) | 120×200×80 | 200×300×120 | 200×300×200 | 300×400×300 | 400×500×400 |
| Volume | 1.9L | 7.2L | 12L | 36L | 80L |
| External Dimension (W×D×H mm) | 440×565×555 | 515×665×600 | 535×665×700 | 705×825×910 | 800×1025×1005 |
